2.2 Inch ILI9341 SPI TFT LCD Display 240x320 TN LCD Screen Module

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

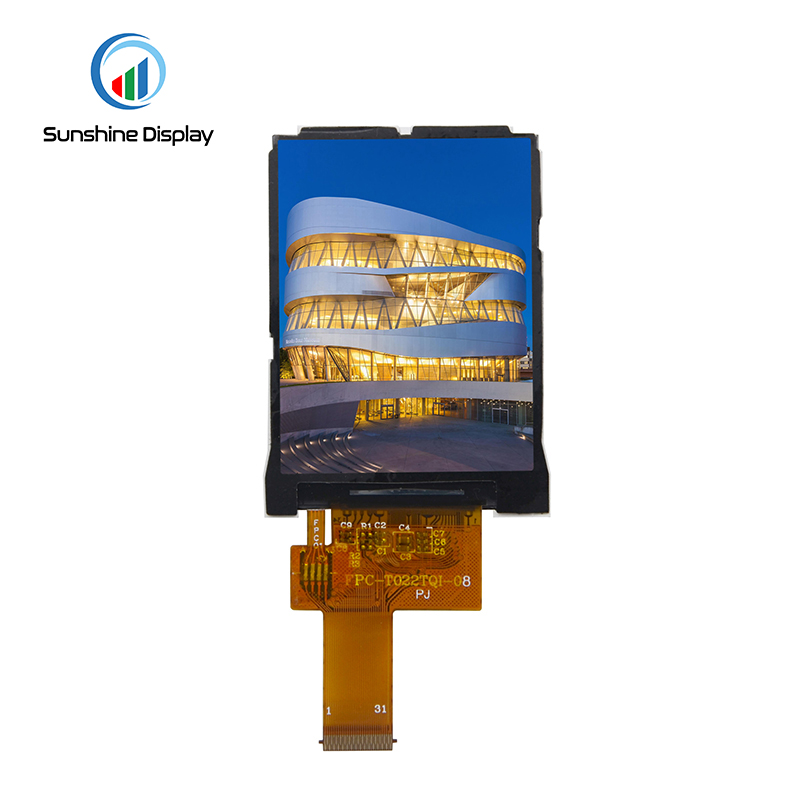

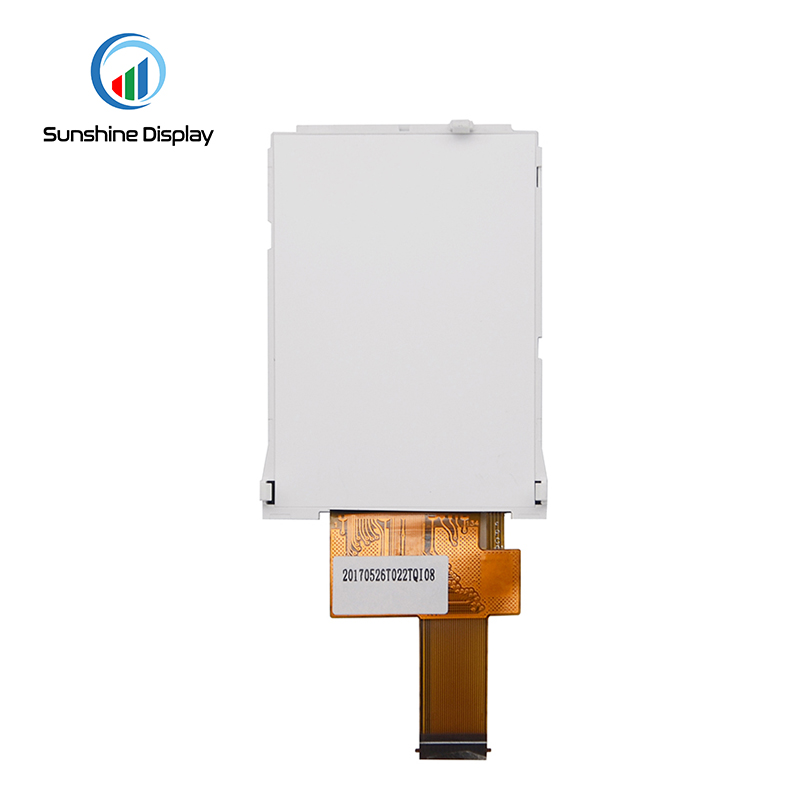

SDT022HQVI-03 2.2 inch Description:

Sunshine Display model SDT022HQVI-03 serials are the standard 2.2 inch color TFT LCD, normally white with transmissive type TN panel, 240*320 resolution, ILI9341V driver IC, 8/16BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 350 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 350 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

For this 2.2 inch TFT LCD display, 240*320 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT022HQVI-03	-
Size	2.2	inch
Resolution	240*320	dots
LCD Type	TN	-
Viewing Angle	06:00	o'clock
Luminance	350	cd/m2
LED Numbers	4P	-
LCD Driver IC	ILI9341V	-
Pin Number	37	-
Module Interface	8/16BIT MCU	-
With/Without TP	Without TP	-
Touch Driver IC	-	-
Outline Dimension	38.5056.162.35	-
Active Area	33.84*45.12	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
