Character COB LCD Modules
Character COB LCD modules provide clear and efficient alphanumeric display for embedded systems and control interfaces. Sunshine supplies mainstream formats such as 16x2, 20x4, and 40x4, supporting reliable readability with low power consumption.
With mature controller options, stable supply chains, and flexible customization capabilities, these modules are suitable for industrial control panels, power management devices, medical instruments, and consumer appliances. Custom interfaces, voltages, and display modes are available based on project requirements.

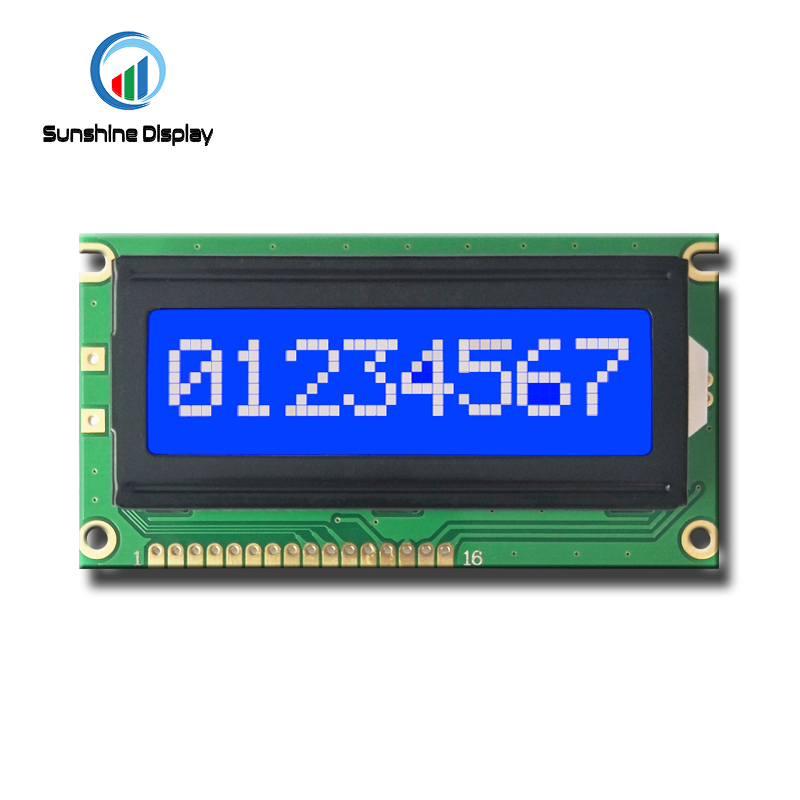

8x1 Character LCD Module with AIP31066 Driver IC
SDM0801B
- Format: 8X1
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 84.0*44.0*13.5
- Viewing Area: 62.2*17.9
- IC: AIP31066

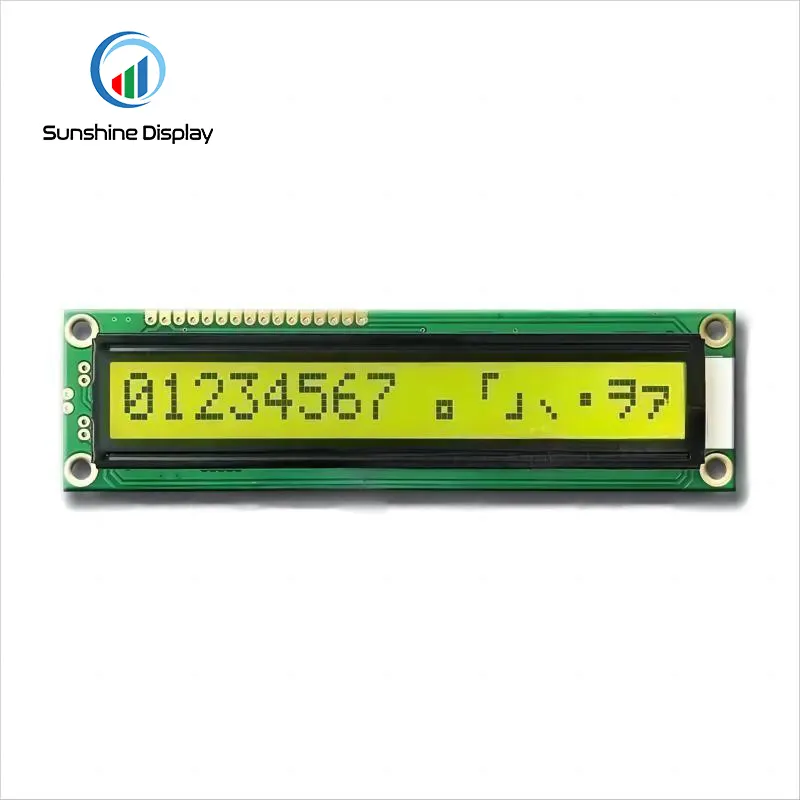

16X1 COB Character LCD Module
SDM1601A
- Format: 16X1
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 80.0*36.0*11
- Viewing Area: 64.5*14.5
- IC: AIP31066

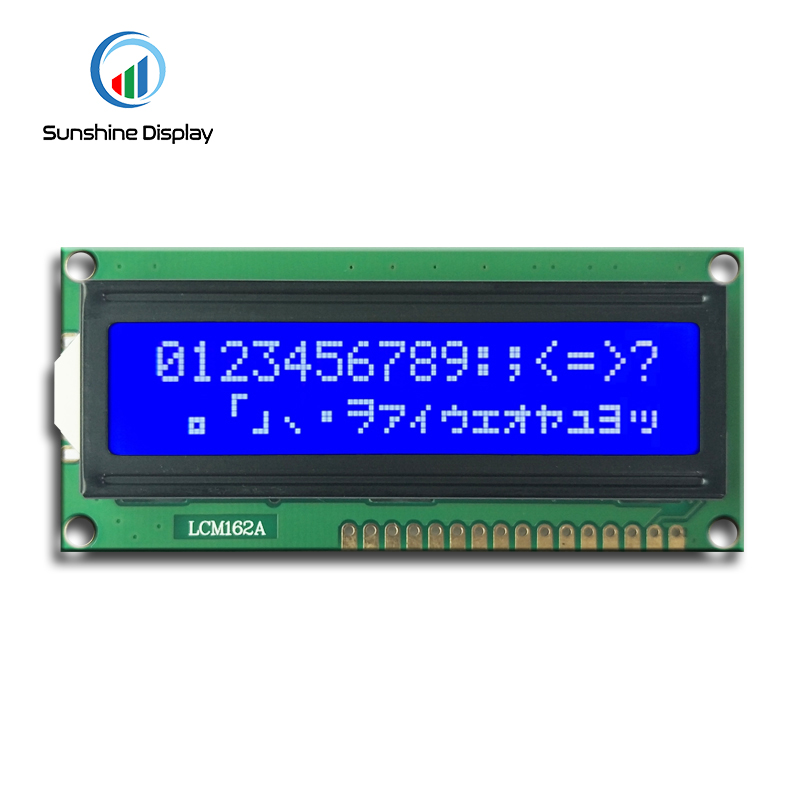

Cheap 16X2 COB Character LCD Module with Backlight
SDM1602A
- Format: 16X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 80.0*36.0*13.0
- Viewing Area: 64.5*14.5
- IC: AIP31066

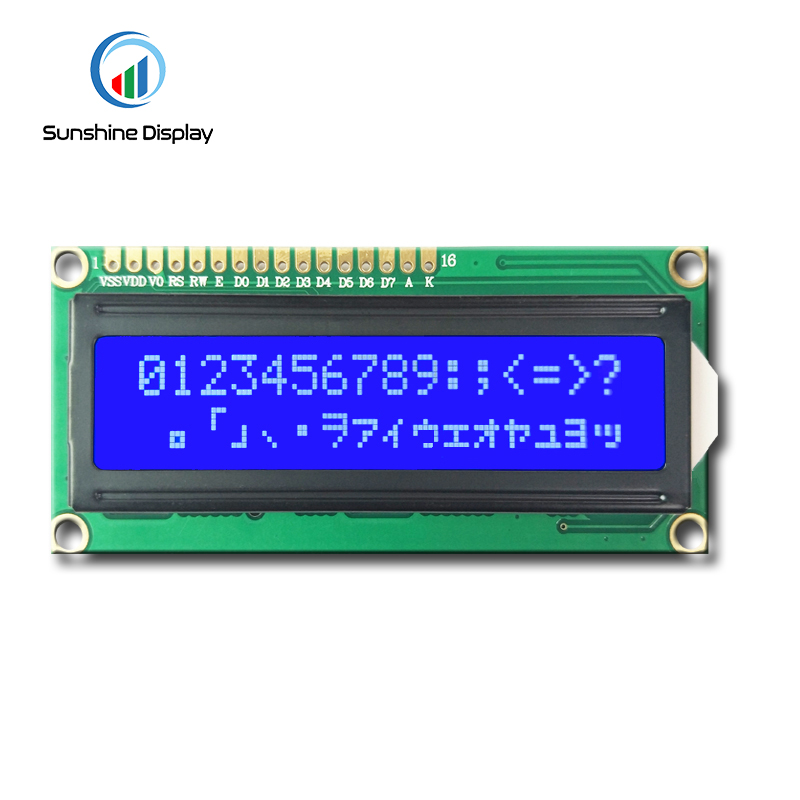

16X2 Monochrome LCD Character LCD Module
SDM1602A-8
- Format: 16X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 80.0*36.0*11.0
- Viewing Area: 64.5*14.5
- IC: AIP31066
Bigger Size 16x2 COB LCD Module with Backloght
SDM1602B
- Format: 16X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 122.0*44.0*13.5
- Viewing Area: 99.0*24.0
- IC: AIP31066

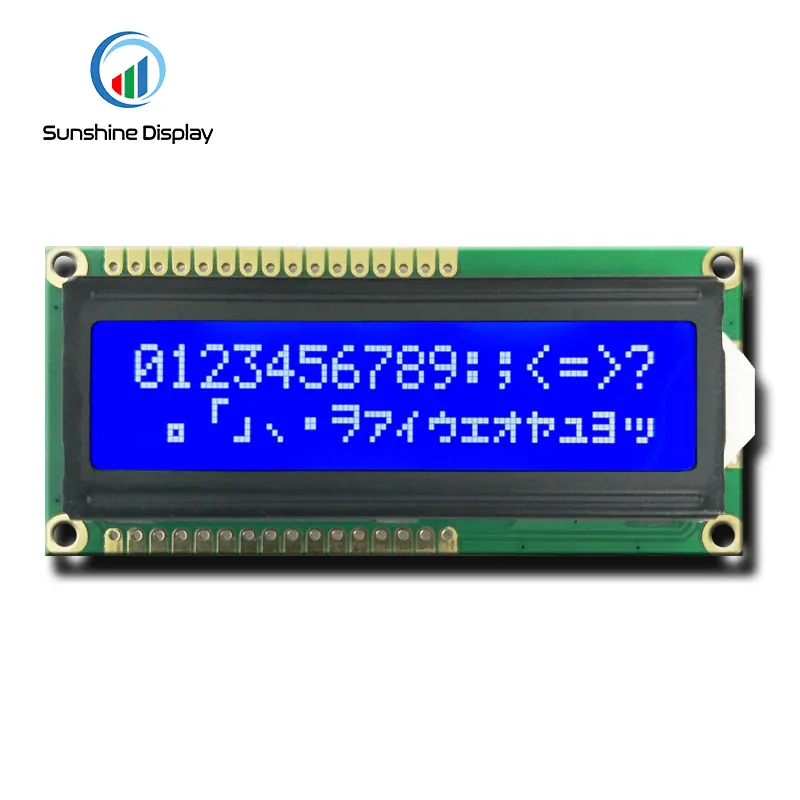

FSTN 16x2 COB LCD Module with white backlight
SDM1602C
- Format: 16X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 80.0*36.0*11.8
- Viewing Area: 64.3*16.0
- IC: AIP31066

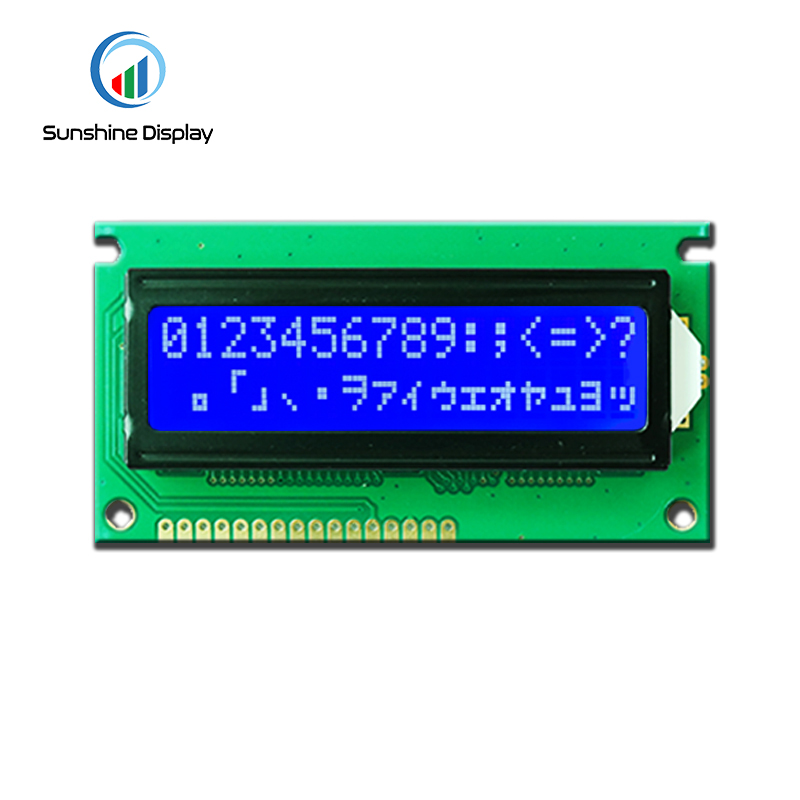

Monochrome LCD 16X2 COB LCD Module with white backlight
SDM1602E
- Format: 16X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 84.0*44.0*11.8
- Viewing Area: 64.3*16.0
- IC: AIP31066

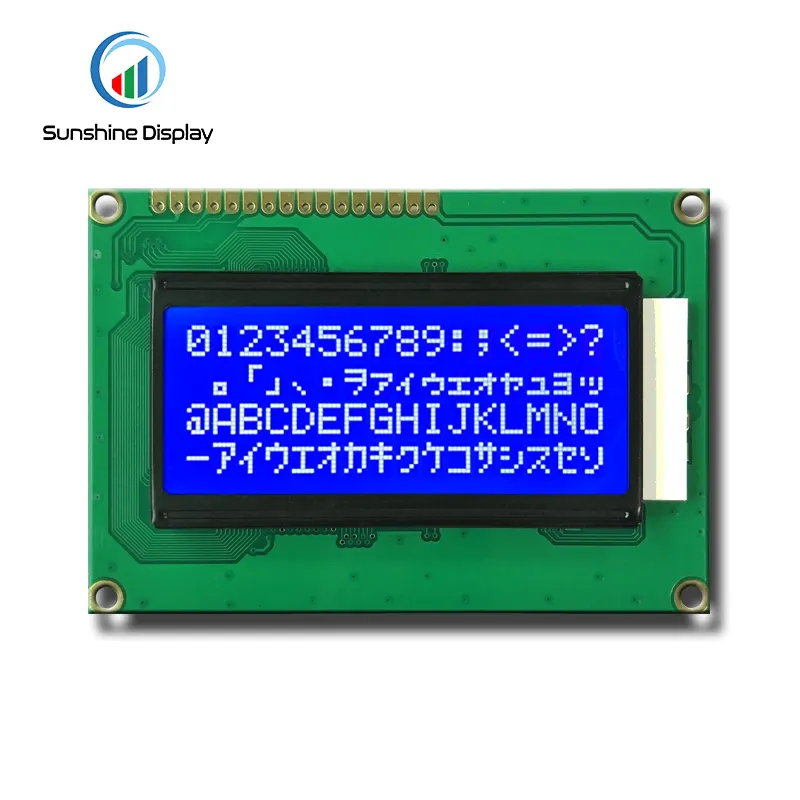

16X4 COB Character LCD Module with Backlight
SDM1604A
- Format: 16X4
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 87.0*60.0*11.0
- Viewing Area: 62.0*25.5
- IC: AIP31066

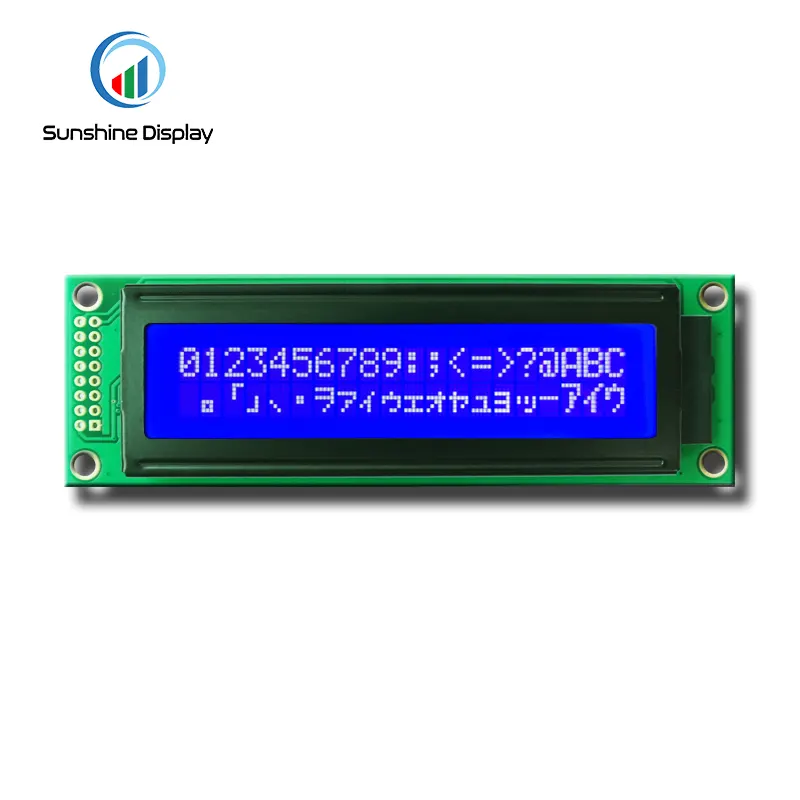

Monochrome LCD 20X2 Character COB LCD Module with Backlight
SDM2002A
- Format: 20X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 116.0*37.0*13.2
- Viewing Area: 85.0*18.6
- IC: AIP31066
STN Blue/FSTN 20x2 Character LCD Module
SDM2002B
- Format: 20X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 180.0*40.0*13.8
- Viewing Area: 149.0*23.0
- IC: AIP31066

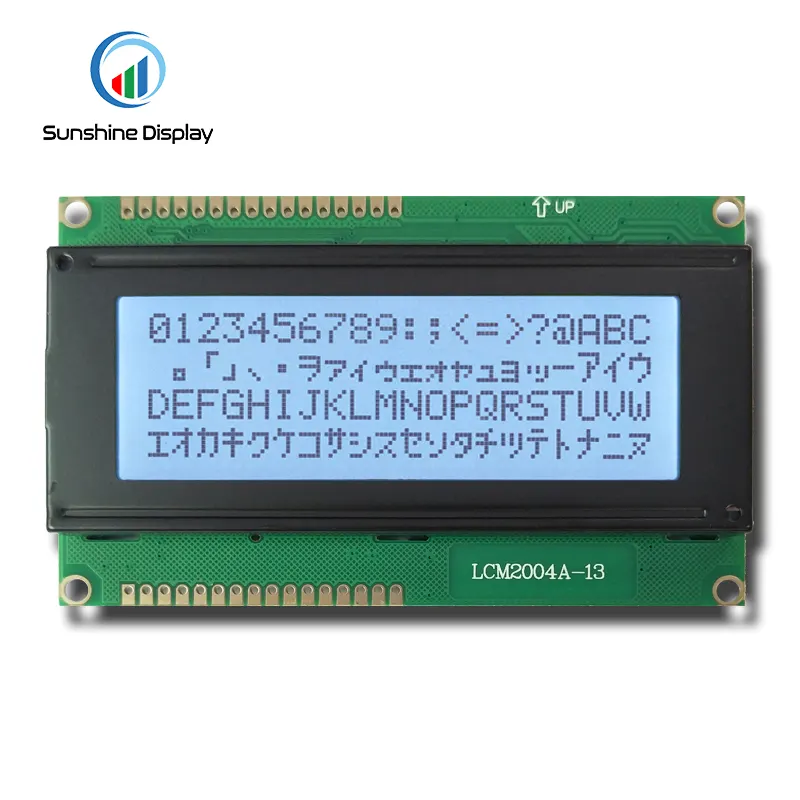

COB LCD Module 2004 Character LCD 20X4 STN Blue/White/YG
SDM2004A
- Format: 20X4
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 98.0*60.0*13.2
- Viewing Area: 77.0*25.2
- IC: AIP31066

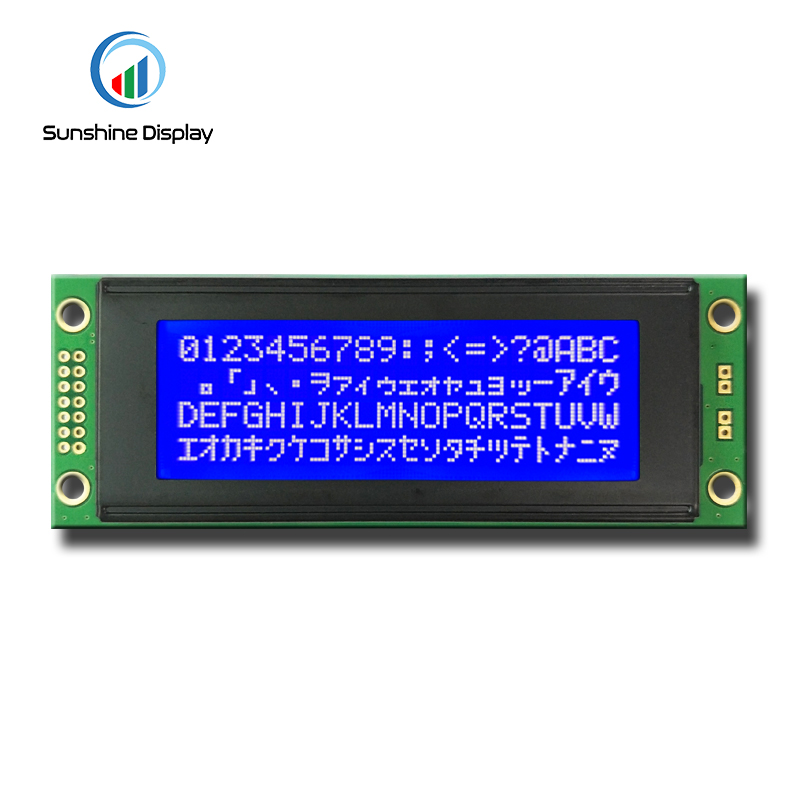

Monochrome LCD STN Blue/YG 20X4 Character LCD Module
SDM2004C
- Format: 20X4
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 118*43*13.2
- Viewing Area: 77.0*25.2
- IC: AIP31066

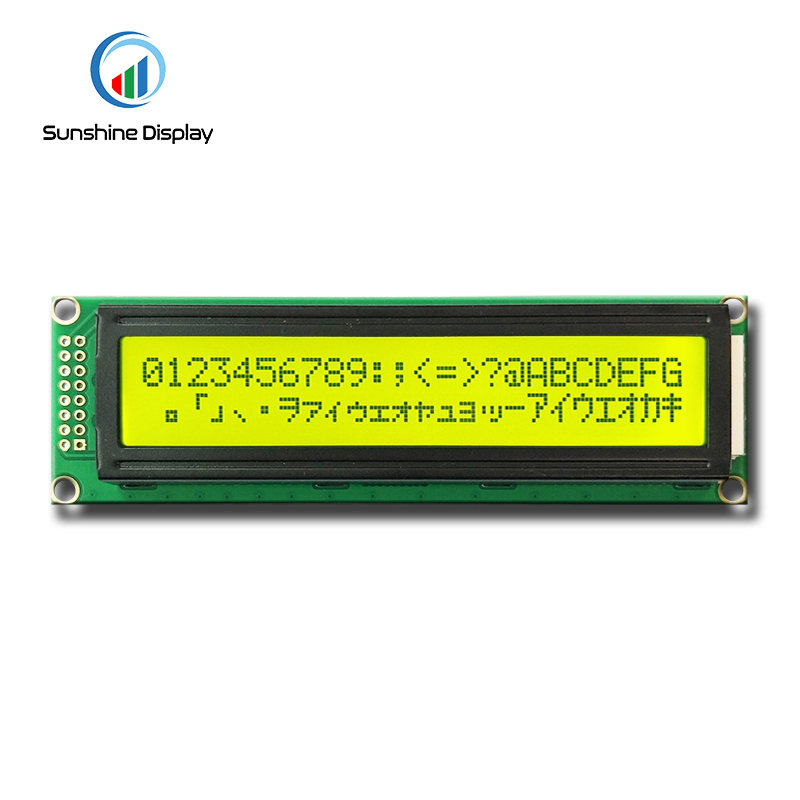

COB LCD Monochrome 24x2 LCD Display
SDM2402A
- Format: 24X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 118*36*13.1
- Viewing Area: 94.5*17.8
- IC: AIP31066

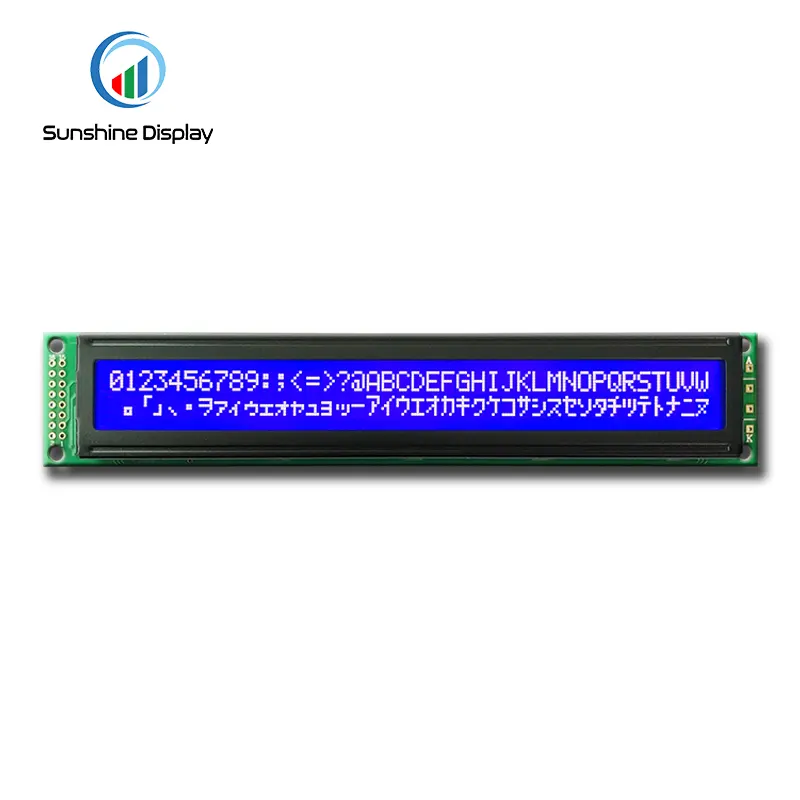

Monochrome LCD Display 40x2 COB LCD Module
SDM4002A
- Format: 40X2
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 182.0*33.5*14.0
- Viewing Area: 154.4*16.5
- IC: AIP31066

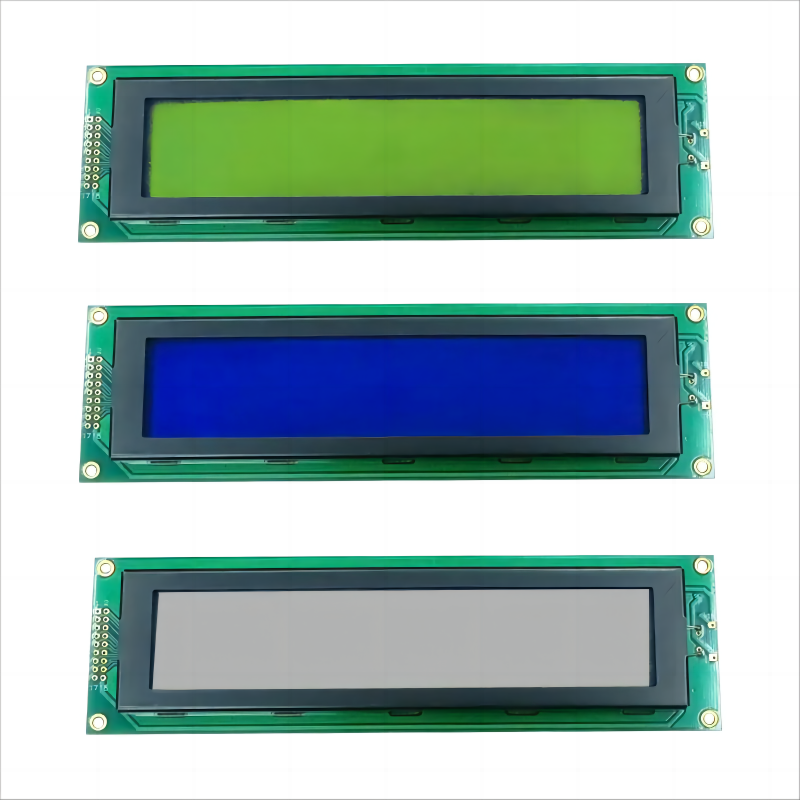

COB LCD 40x4 Character STN Blue/YG LCD Display
SDM4004A
- Format: 40X4
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 190.0*54.0*13.3
- Viewing Area: 149.0*30.0
- IC: AIP31066
