COG LCD Modules for Compact Embedded Devices
COG LCD modules use Chip-on-Glass technology to mount the driver IC directly on the glass substrate, reducing thickness and saving PCB space. This structure is ideal for compact products that require low power consumption and reliable monochrome display performance.
Sunshine COG modules support customized viewing modes, polarizers, pin layouts, and operating conditions. They are widely used in instruments, handheld devices, portable test equipment, and industrial controllers where compact size, long lifecycle, and cost-effective integration are important.

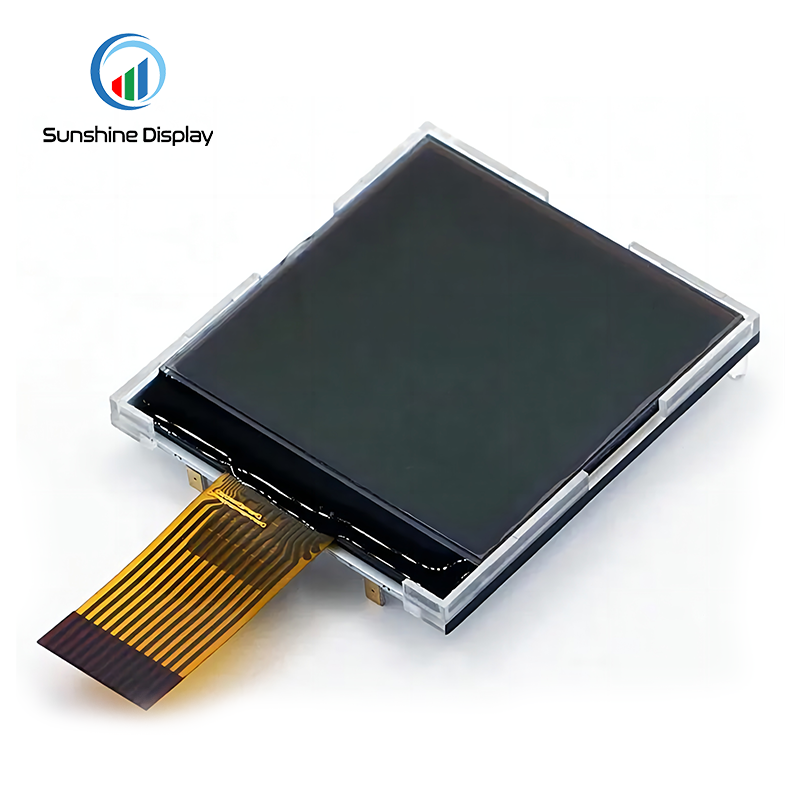

128x128 COG LCD Display without Backlight or with Backlight
SDG128128B
- Dot Matrix: 128x128
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 43.5*42*1.7
- Viewing Area: 40.5*33.5
- IC: ST7571

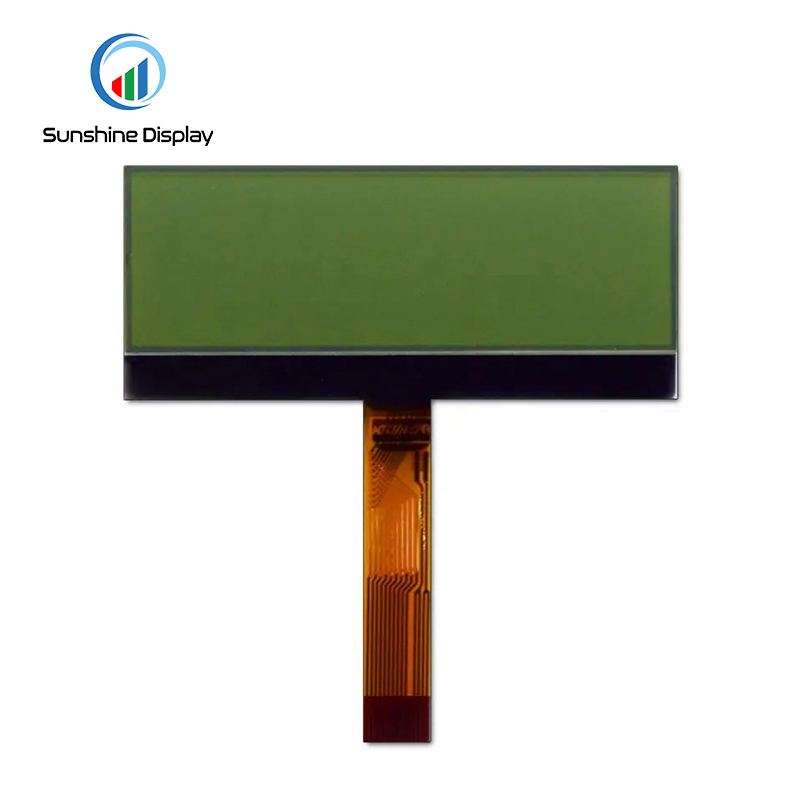

128x32 Dots COG LCD Module with White Backlight
SDG12832W
- Dot Matrix: 128x32
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 52*27.5*3.1
- Viewing Area: 46*16
- IC: UC1705

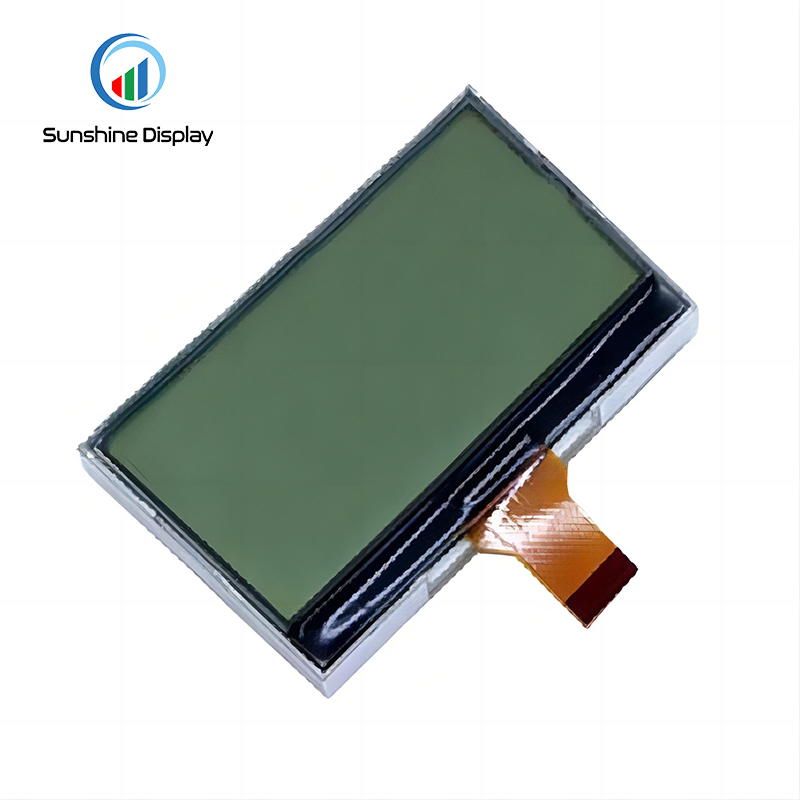

COG LCD Display 128x64 DOTS LCD Module with Green Bacaklight
SDG12864A
- Dot Matrix: 128x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 36.8*38.8*3
- Viewing Area: 32*29
- IC: ST7565R

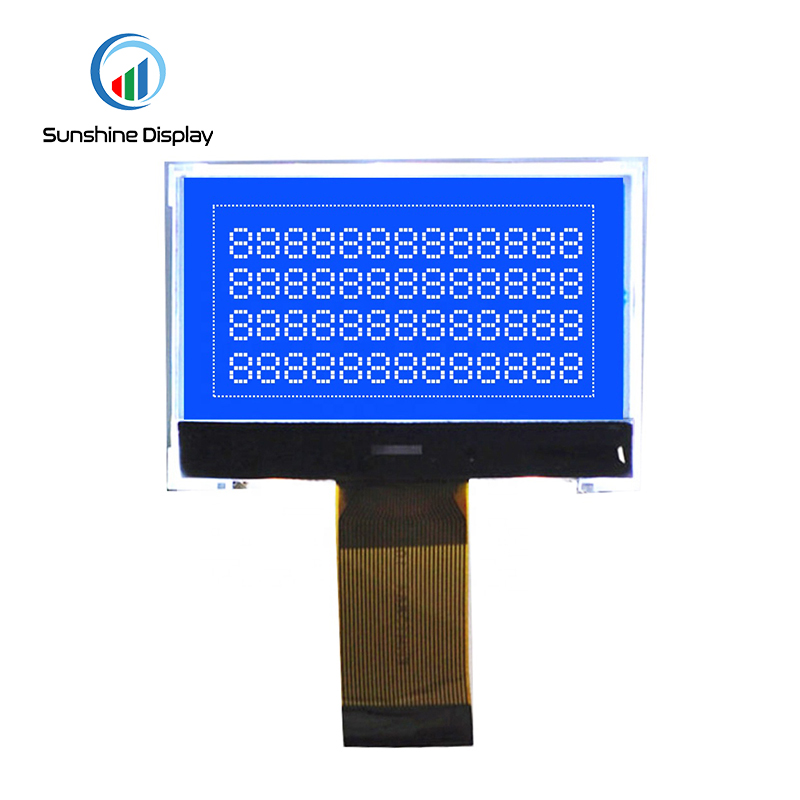

128x64 COG LCD Module without Backlight
SDG12864B
- Dot Matrix: 128x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 77*48*2.8
- Viewing Area: 73*39
- IC: IST3040

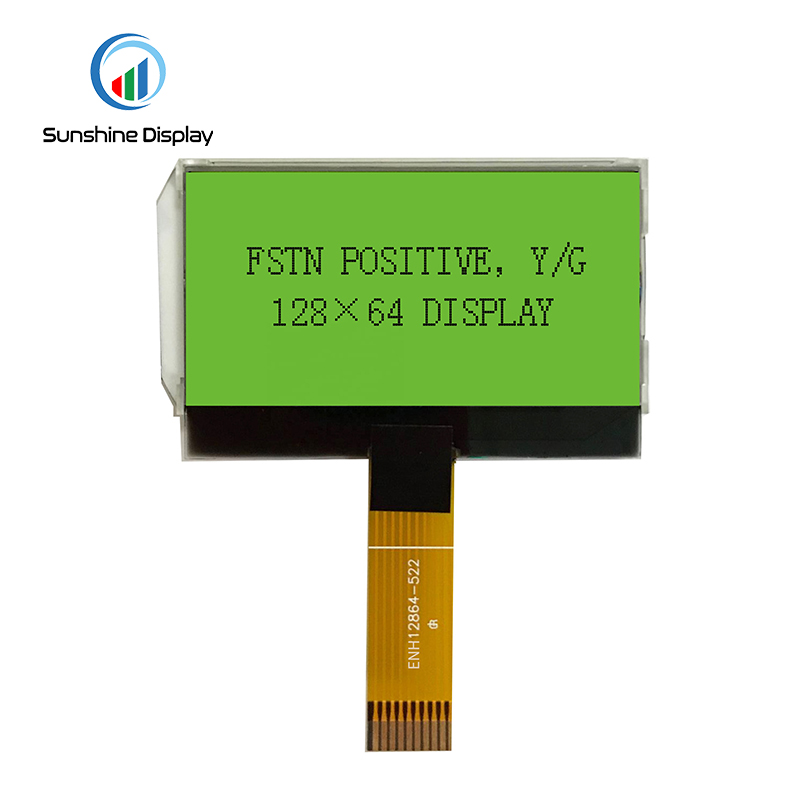

128x64 COG LCD Module with Green Backlight
SDG12864C
- Dot Matrix: 128x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 78*37.4*5.2
- Viewing Area: 53.4*25.2
- IC: ST7567

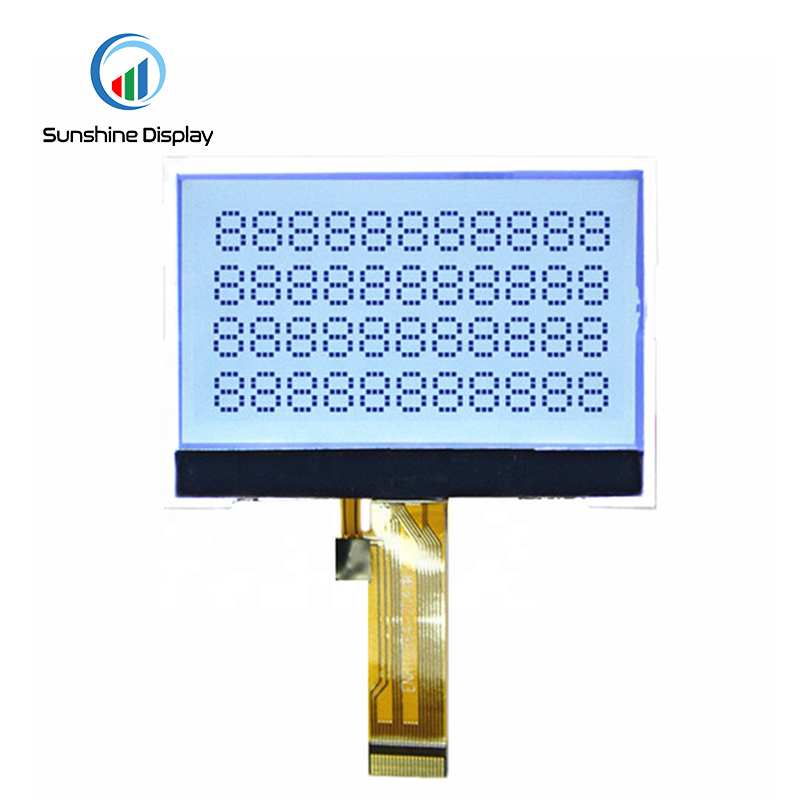

Monochrome LCD Module 128x64 COG LCD Display with White Backlight
SDG12864D
- Dot Matrix: 128x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 41*33.1*3
- Viewing Area: 36.2*22.5
- IC: UC1701
128x64 COG LCD Module with White Backlight
SDG12864E
- Dot Matrix: 128x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 26.7*19.26*1.8
- Viewing Area: 22.94*11.46
- IC: ST7567S

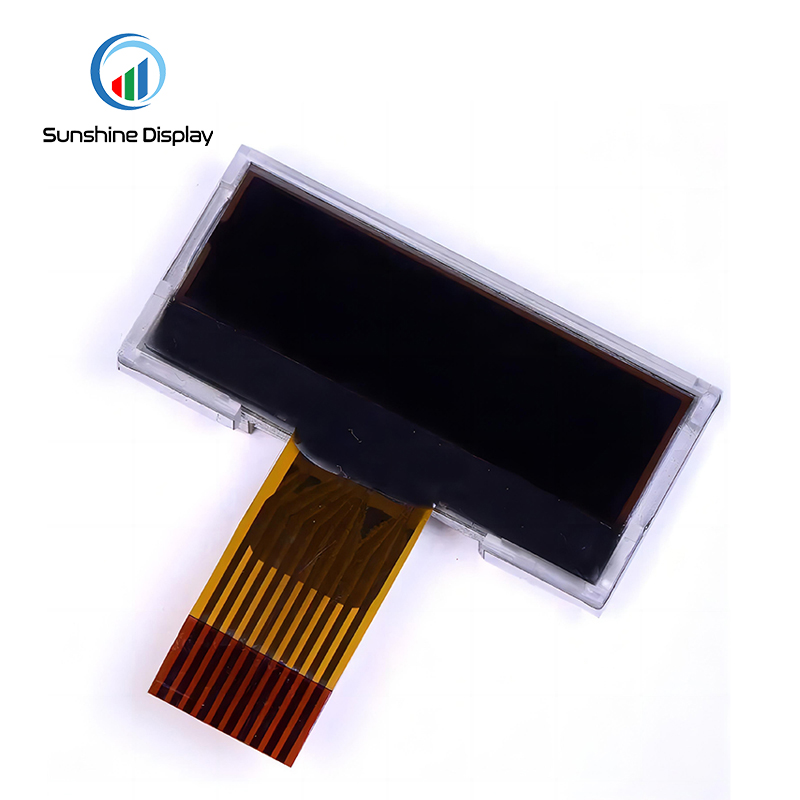

COG LCD Module 132x32 dots LCD Display
SDG13232A
- Dot Matrix: 132x32
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 34.5*15*1.7
- Viewing Area: 31.9*9.5
- IC: ST7567

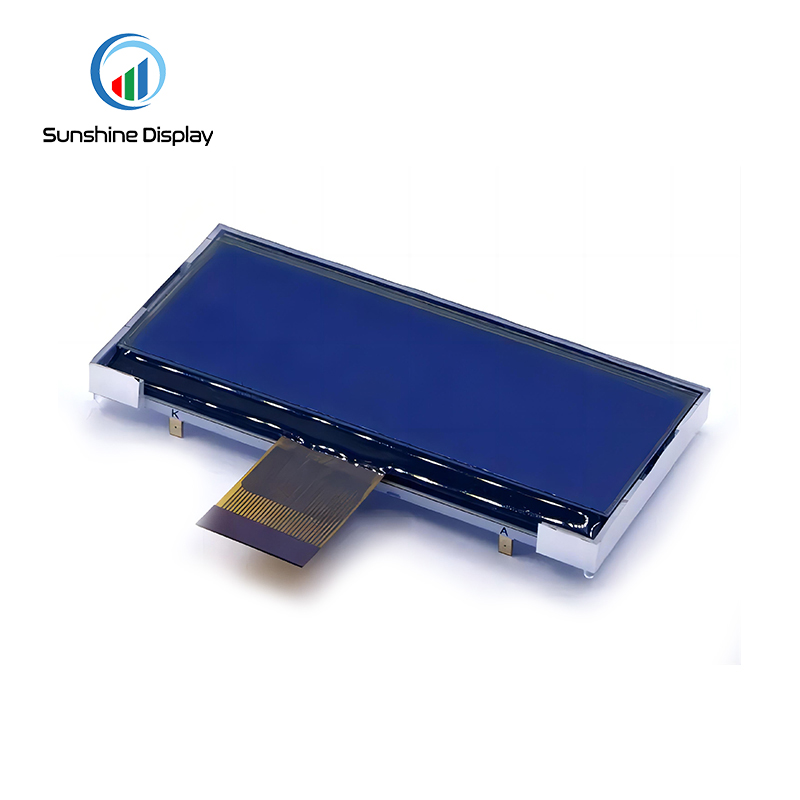

160x64 Dots Monochrome LCD COG LCD Module with White Backlight
SDG16064B
- Dot Matrix: 160x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 73.0*36.0 *5.7
- Viewing Area: 69.50* 27.00
- IC: UC1638

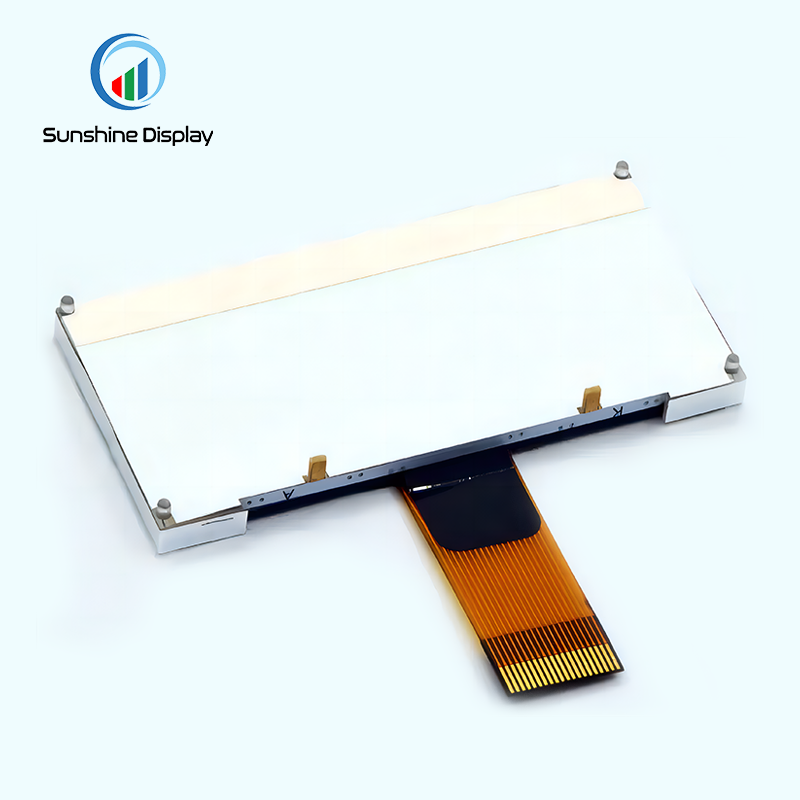

Monohcrome LCD Display 192x64 COG LCD Module with Backlight
SDG19264B
- Dot Matrix: 192x64
- Display Type: STN-Blue, STN-YG FSTN
- Outline Dimension: 100*48*11.5
- Viewing Area: 84*32
- IC: IST3020
