2.2inch 176X220 color lcd screen MCU interface TFT LCD Module

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

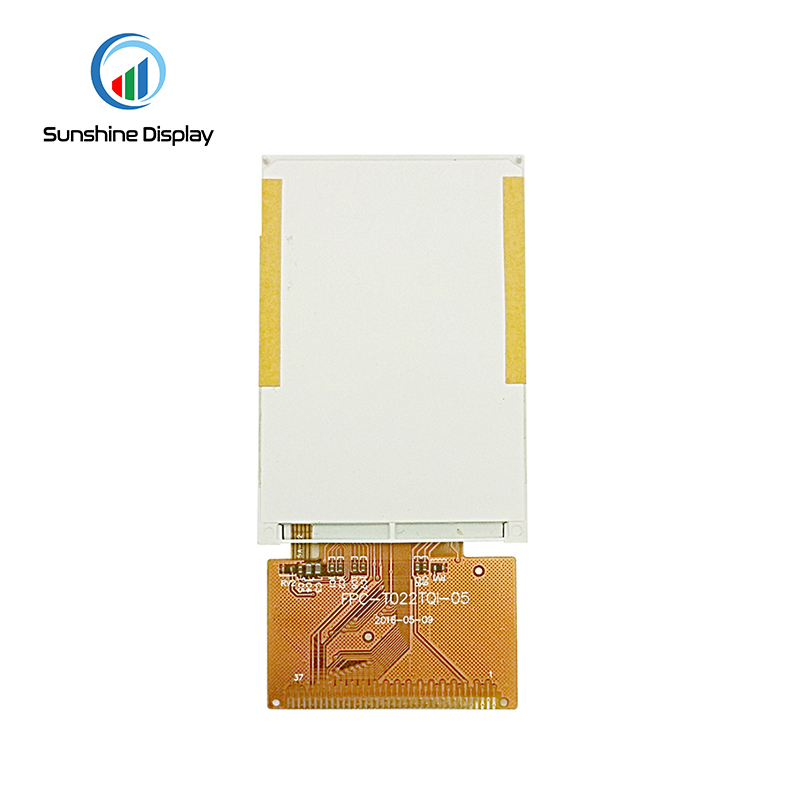

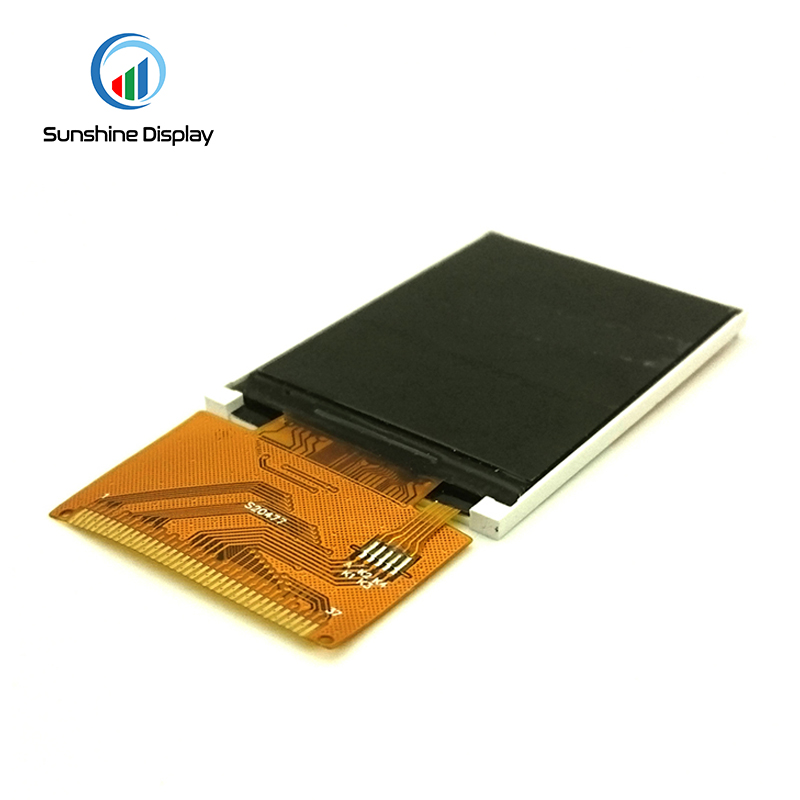

SDT022HFH-01 2.2 inch Description:

Sunshine Display model SDT022HFH-01 serials are the standard 2.2 inch color TFT LCD, normally white with transmissive type TN panel, 176*220 resolution, HX8340B driver IC, 8BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 240 nits.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 240 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.

Application

For this 2.2 inch TFT LCD display, 176*220 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT022HFH-01	-
Size	2.2	inch
Resolution	176*220	dots
LCD Type	TN	-
Viewing Angle	06:00	o'clock
Luminance	240	cd/m2
LED Numbers	4S	-
LCD Driver IC	HX8340B	-
Pin Number	20	-
Module Interface	8BIT MCU	-
With/Without TP	Without TP	-
Touch Driver IC	-	-
Outline Dimension	42.3057.502.45	-
Active Area	34.85*43.56	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
