15.6inch IPS TFT Display LCD Screen with 1920X1080 Resolution with 30PIN eDP Interface
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

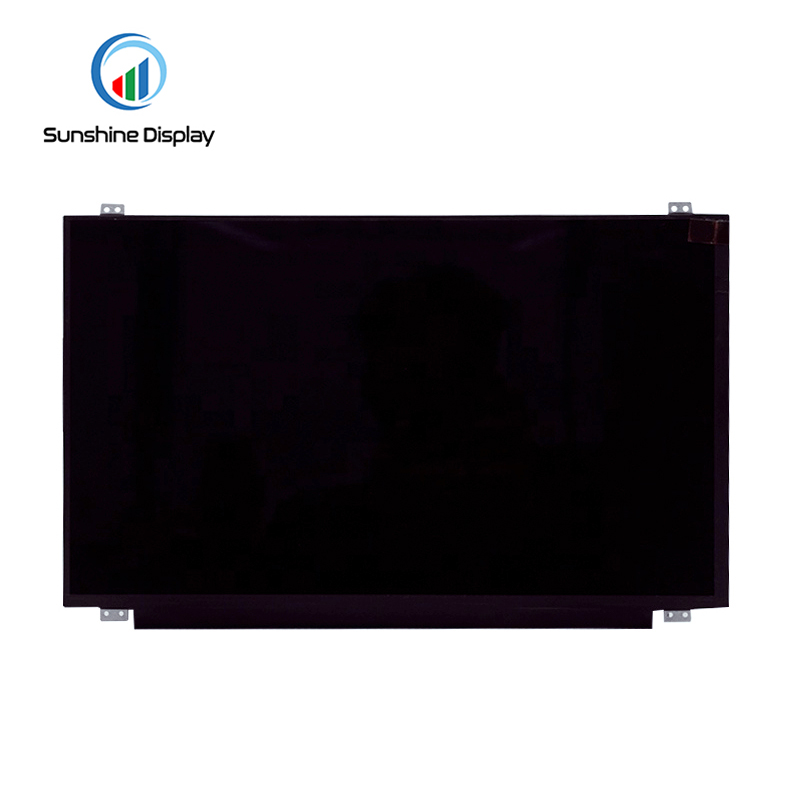

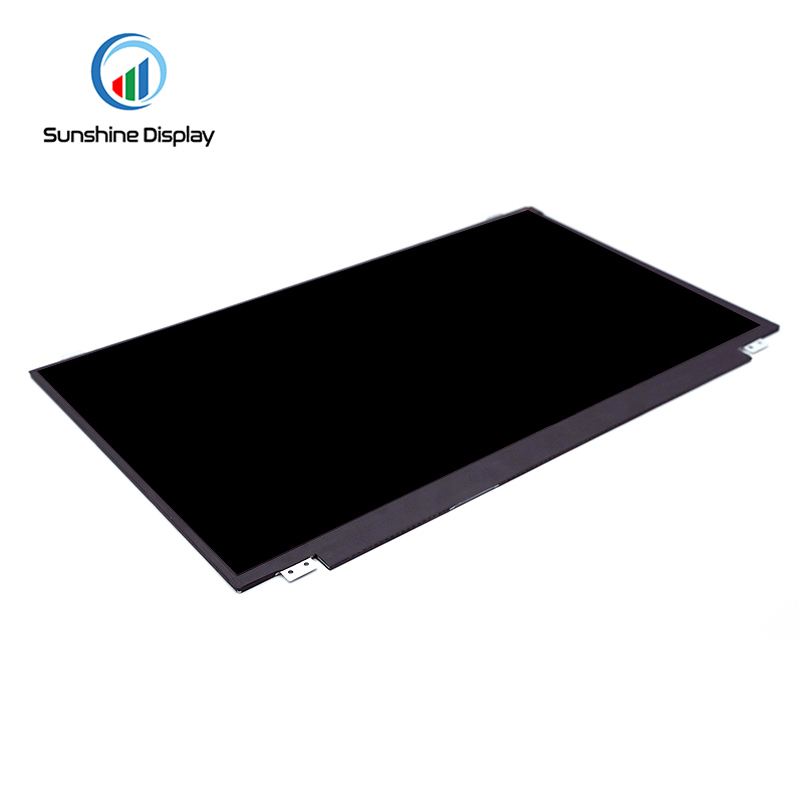

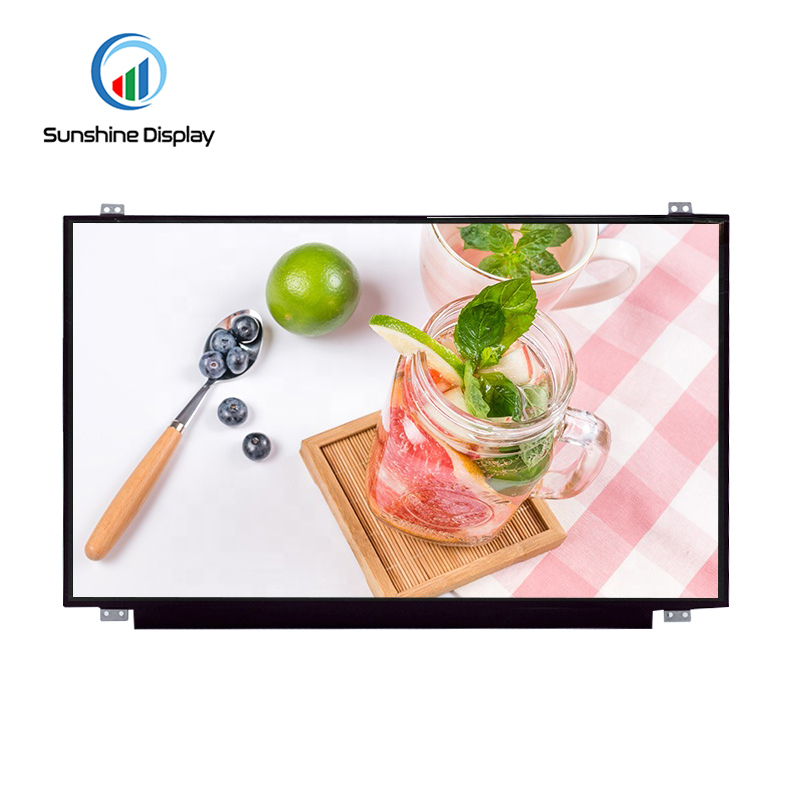

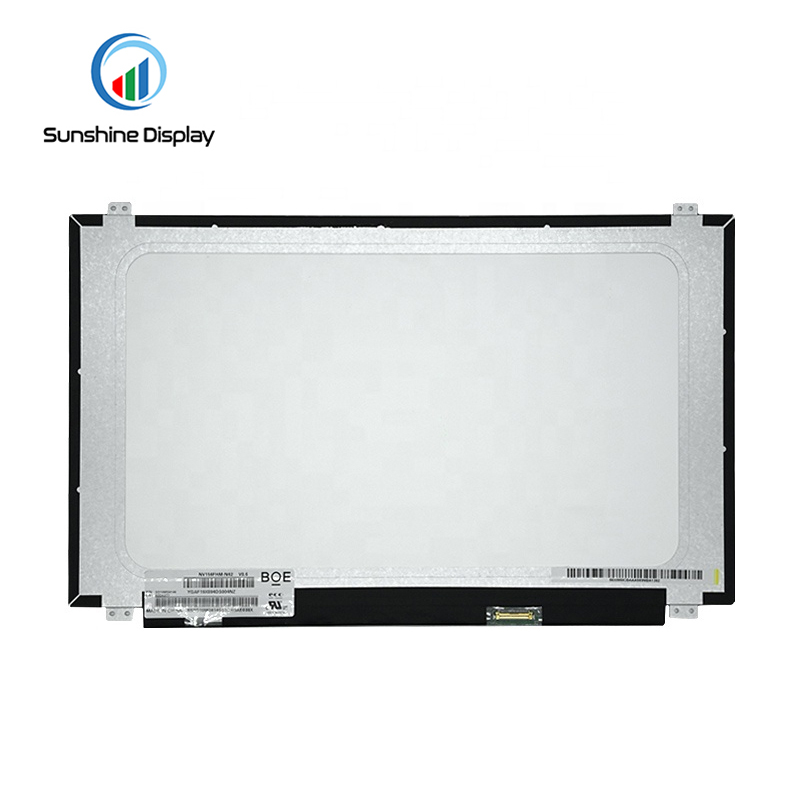

SDT156CFI5-02 15.6 inch Description:
SDT156CFI5-02 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. This product is composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 344.16*193.59 and the native resolution is 1920*1080. Features of this product are listed in the following table.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 350 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of 0~+50 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
- IPS technology provides consistent color and contrast over ultra-wide viewing angles.
Application
- 1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
- 2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
- 3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
- 4. Medical Devices: sphygmomanometer, ECG machine.
- 5. Sports Equipment: Running machine.
- 6. Industrial Control Equipment: remote control, punched-card machine.
- 7. Information Terminal Display: POS, PDA, Handheld devices.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT156CFI5-02 | - |
| Size | 15.6 | inch |
| Resolution | 1920*1080 | dots |
| LCD Type | IPS | - |
| Viewing Angle | All | o'clock |
| Luminance | 350 | cd/m2 |
| LED Numbers | 9S5P | - |
| LCD Driver IC | NA | - |
| Pin Number | 30 | - |
| Module Interface | 2 LANE eDP | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 350.76*216.39*2.90 | - |
| Active Area | 344.16*193.59 | mm |
| Operating Temperature | 0~+50 | ℃ |
| Storage Temperature | -20~+60 | ℃ |
