Special 3.5inch IPS 680X480 TFT LCD Screen Module with NV3052C Driver IC

Customized

Accepted

Sample Stock

Small amount stock

MOQ

500pcs

Lead Time

4-6 weeks

Payment

Bank transfer/Alibaba/Paypal

Shipping Port

HK/SZ

Prodcuts Details

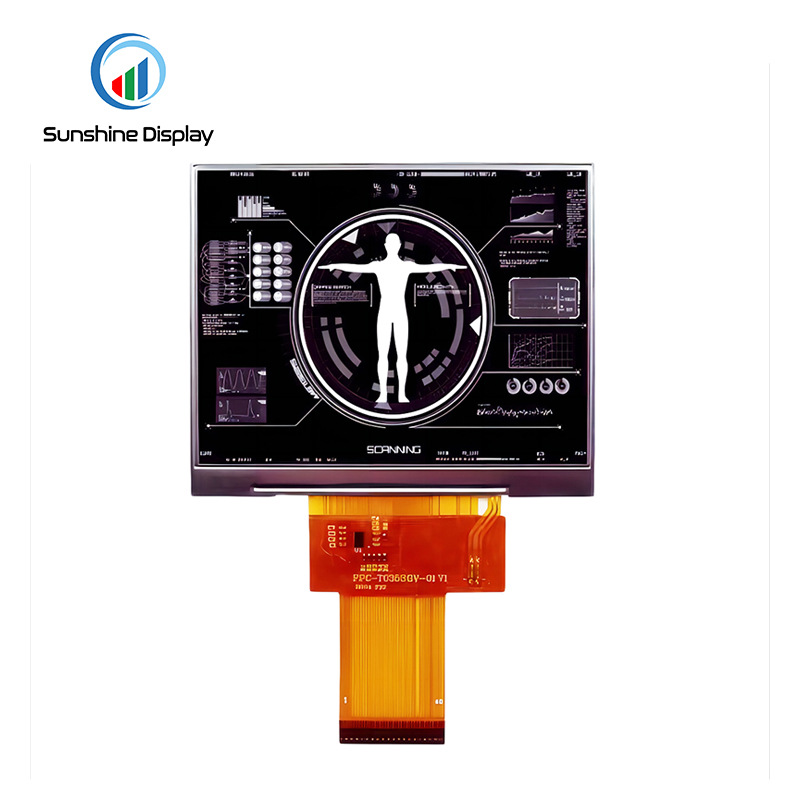

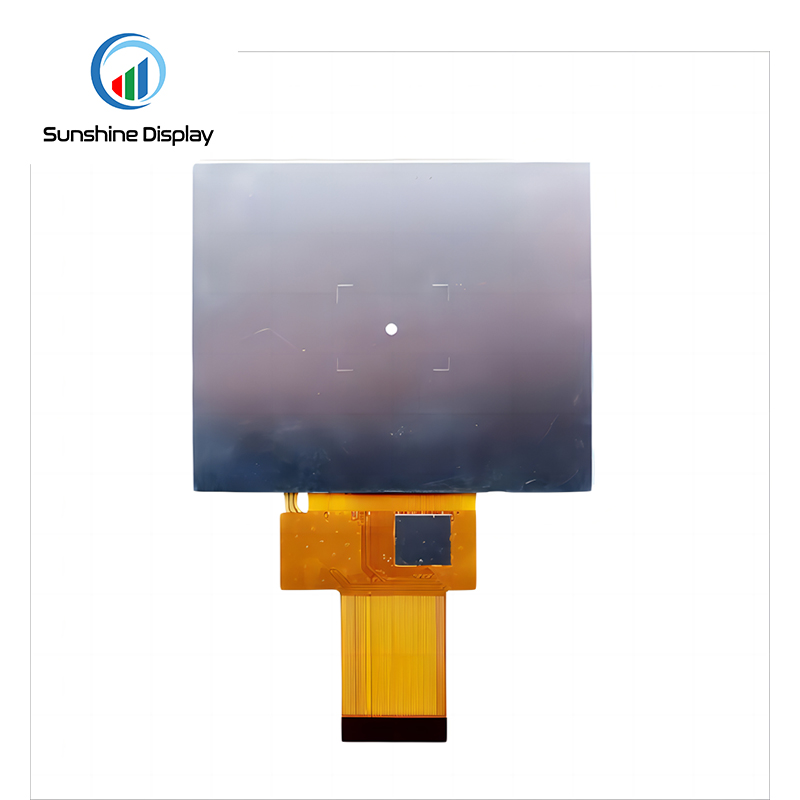

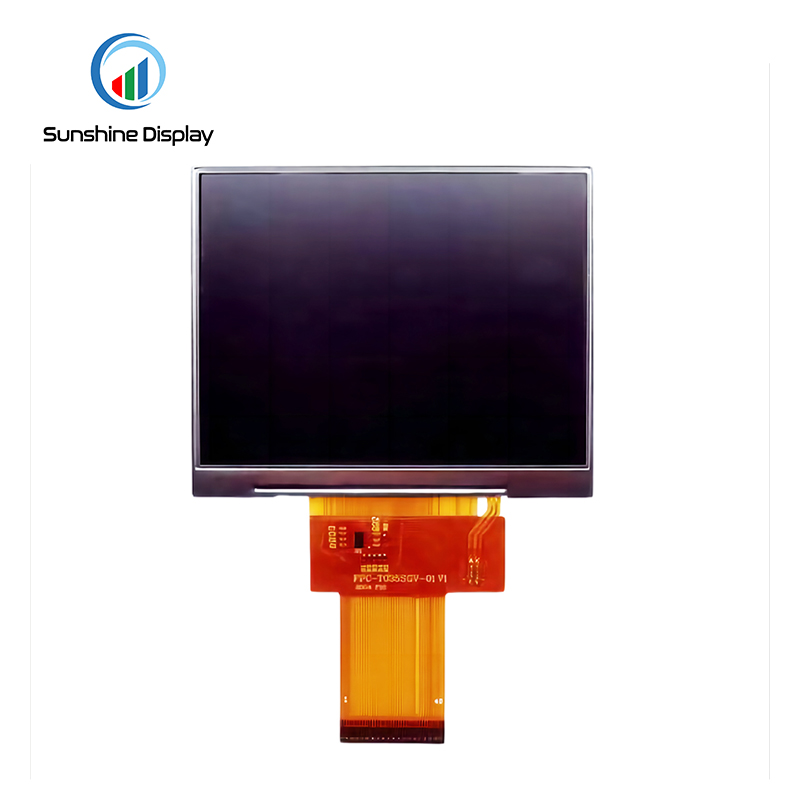

SDT035SVGA-01 3.5 inch Description:

SDT035SVGA-01 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. This product is composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08X52.56 and the native resolution is 640*480. Features of this product are listed in the following table.

Key Features & Advantages

Outstanding optical performance with typical brightness up to 500 cd/m² and high contrast.
Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
IPS technology provides consistent color and contrast over ultra-wide viewing angles.

Application

1. Office Electronic Equipment: money counting machine, office phone set, copying machine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine.
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.

Why Choose Sunshine Display?

With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.

Feature	Specification	Unit
Brand	Sunshine Display	-
Part Number	SDT035SVGA-01	-
Size	3.5	inch
Resolution	640*480	dots
LCD Type	IPS	-
Viewing Angle	AII	o'clock
Luminance	500	cd/m2
LED Numbers	6S	-
LCD Driver IC	NV3052C	-
Pin Number	40	-
Module Interface	3SPI+RGB24bit	-
With/Without TP	Without TP	-
Touch Driver IC		-
Outline Dimension	76.74X63.74X3.2	-
Active Area	70.08X52.56	mm
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃
