IPS 4.3inch TFT LCD Panel with Capacitive Touch Screen 480X272
SDT043HPSI-01CP
SDT TFT LCD Products
Categories
- Standard TFT LCD Module
- IPS TFT LCD Module
- Sunlight Readable TFT LCD
- TFT with Capacitive Touch Screen
- Wide Temperature TFT Display
- Round TFT LCD Module
- COG LCD Module
- Character COB LCD Module
- Graphic COB LCD Module
- OLED LCD Display
- Bar Type TFT LCD Module
- Circular knob TFT display
Explore similar products
2.0 inch 176*220 TFT LCD Screen 8bit/16bit MCU interface with Resistive Touch Panel
Customized
Accepted
Sample Stock
Small amount stock
MOQ
500pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
Prodcuts Details

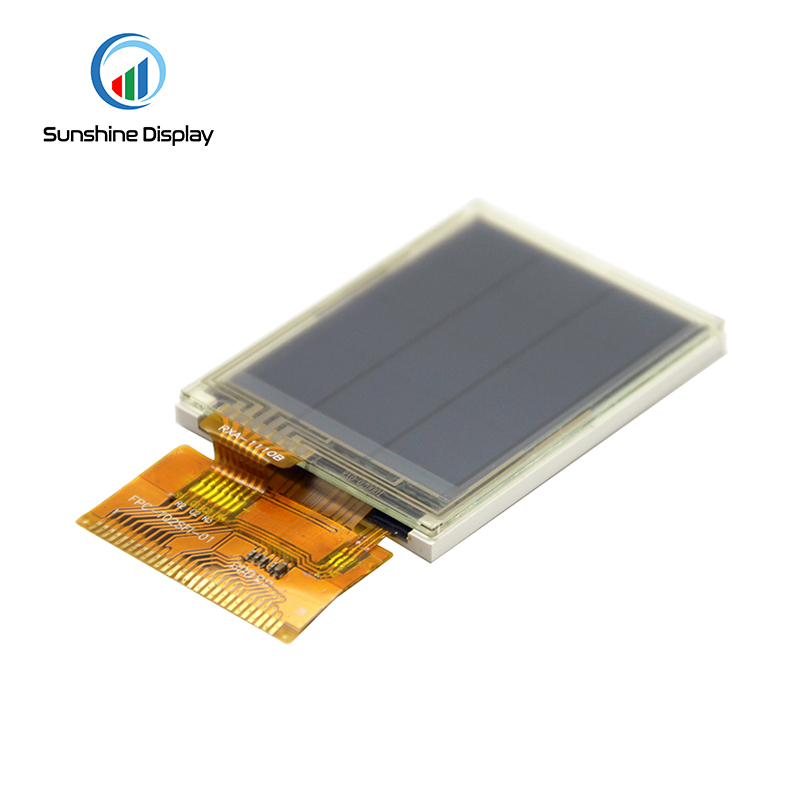

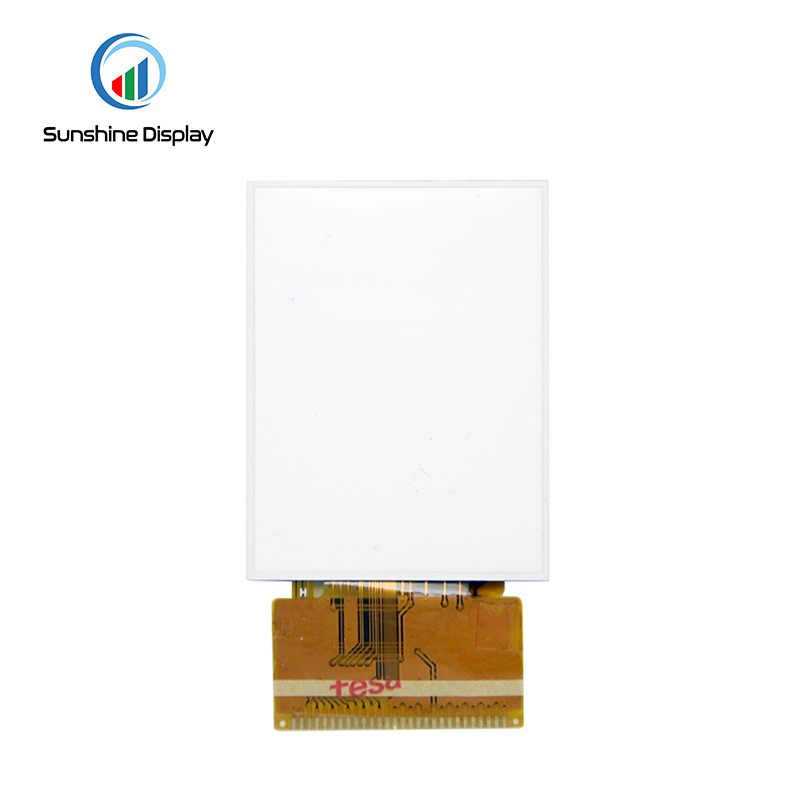

SDT020HFI-01P 2.0 inch Description:
Sunshine Display model SDT020HFI-01P serials are the standard 2.0 inch color TFT LCD, normally white with transmissive type TN panel, 176*220 resolution, ILI9225G driver IC, 8BIT MCU interface, 16.7M color depth, Anti-glare surface treatment. with RTP & CTP available, brightness 150 nits.
Key Features & Advantages
- Outstanding optical performance with typical brightness up to 150 cd/m² and high contrast.
- Industrial-grade reliability with a wide operating temperature range of -20~+70 and robust design for 24/7 continuous operation.
- Flexible interface compatibility for easy integration with mainstream controllers and embedded platforms.
- Long-lifetime LED backlight helps reduce total cost of ownership over the product lifecycle.
Application
For this 2.0 inch TFT LCD display, 176*220 resolution, suitable for Industrial Equipment, Medical devices, Household appliances, Tester Equipment.
Why Choose Sunshine Display?
With more than 20 years of experience in LCD module manufacturing, Sunshine Display not only delivers high-quality products but also comprehensive technical support, including customization services, driver board integration guidance, and preferential pricing for volume orders. Every module undergoes a 72-hour aging test before shipment to ensure stable and reliable performance from day one.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Sunshine Display | - |
| Part Number | SDT020HFI-01P | - |
| Size | 2.0 | inch |
| Resolution | 176*220 | dots |
| LCD Type | TN | - |
| Viewing Angle | 12:00 | o'clock |
| Luminance | 150 | cd/m2 |
| LED Numbers | 2P | - |
| LCD Driver IC | ILI9225G | - |
| Pin Number | 28 | - |
| Module Interface | 8BIT MCU | - |
| With/Without TP | Without TP | - |
| Touch Driver IC | - | - |
| Outline Dimension | 38.50*51.65*4.10 | - |
| Active Area | 31.68×39.60 | mm |
| Operating Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |
